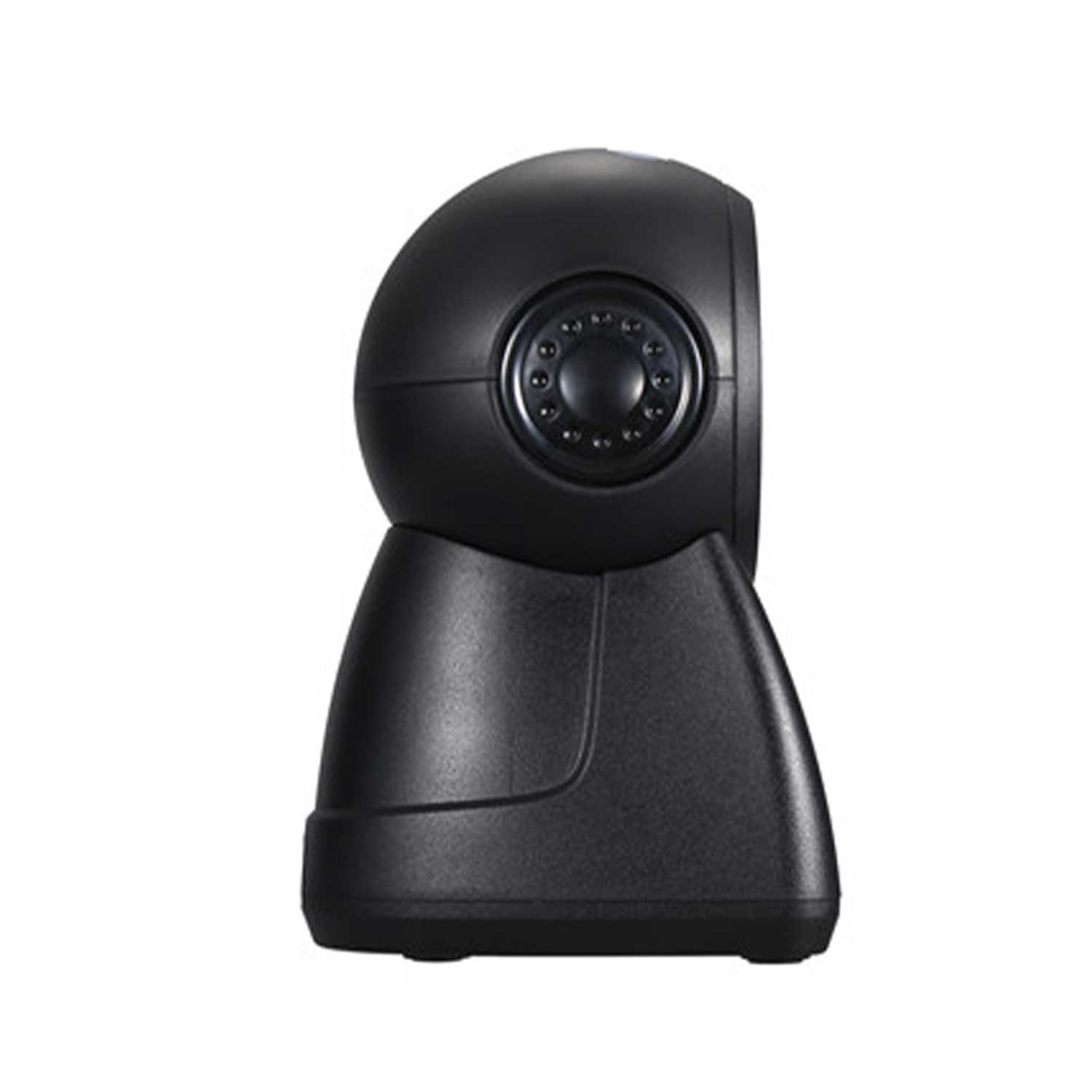

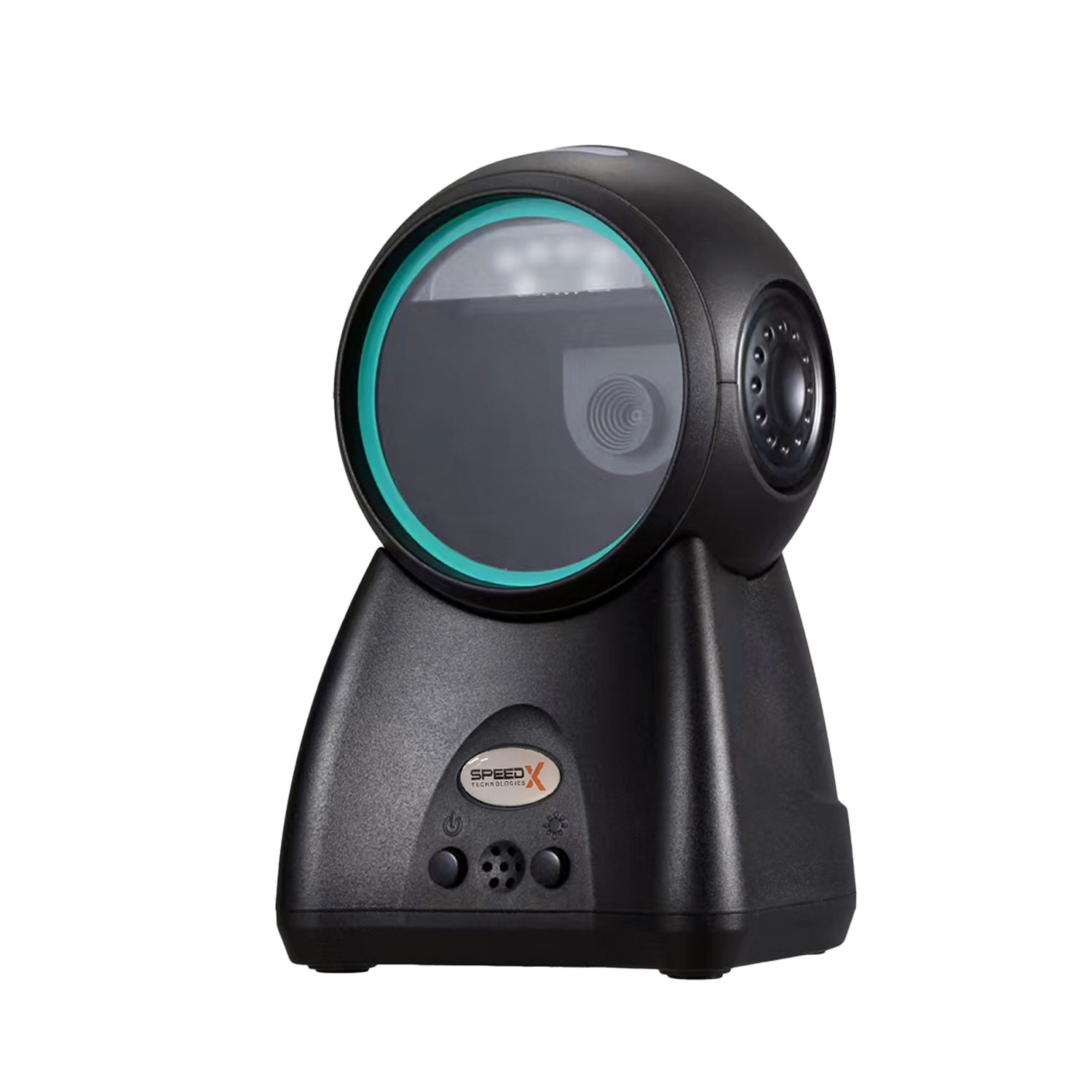

Speed-x Hoi-9250 2d Desktop Barcode Image Scanner

Scan light source Natural light + led

NoveltyNew

Product type Bar code scanners

Model: HOI-9250

Color intensity32 bits

Exploration widthA4

GuyBarcode scanner

Interface typeUSB

Exploration item type CMOS

Scan speed500/s

Optical resolution600*600

BrandEVAWGIB extension

OriginCN (Origin)

Certification CE, FCC, RoHS

Data interface USB

Drop height1.2m cement floor drop on six sides (once on each of the six sides)

Weight300g

Protection levelIP54

Image sensorCMOS

DPI(W*H)640px*480px

CMOS (global exposure)

Pixels: 640*480

Light source: 617nm red LED

Scan Mode: Omni-directional induction trigger scan/follow

Minimum resolution: 0.127mm(5mil) @ code 39, pcs = 90%

Use environment: 0°C-50°C

Storage temperature: -20? ~ +70?

Storage Humidity: 5%-95% non-condensing

Ambient Lighting: 0 ~ 8,600Lux (Fluorescent) 0 ~ 100,000Lux (Sunlight)

Input voltage: 5VDC ± 10%

Operating current: 175mA typical

Depth of Field Angle: 30°V x 48° (Vertical & Horizontal)

Field of view angle: 48° (H) x 30° (V)

Interface support: USB, USB-COM, RS-232 (optional)

Outer box size: 535mm x 355mm x 485mm(L*W*H)

Box Size: 175mm x 130mm x 115mm(L*W*H)

Product weight: About 300g (without packaging and accessories)

Gross weight: About 450g (including packaging and accessories)

Standard cable: Straight line: 1.8m

Color: Black/White

Structure of material: ABS + PC

Sealing grade: IP54

Drop height: 1.5m

Decoding Capability: 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS

2D: QR, Data Matrix (DM), PDF417, supporting mobile phone screen code reading
