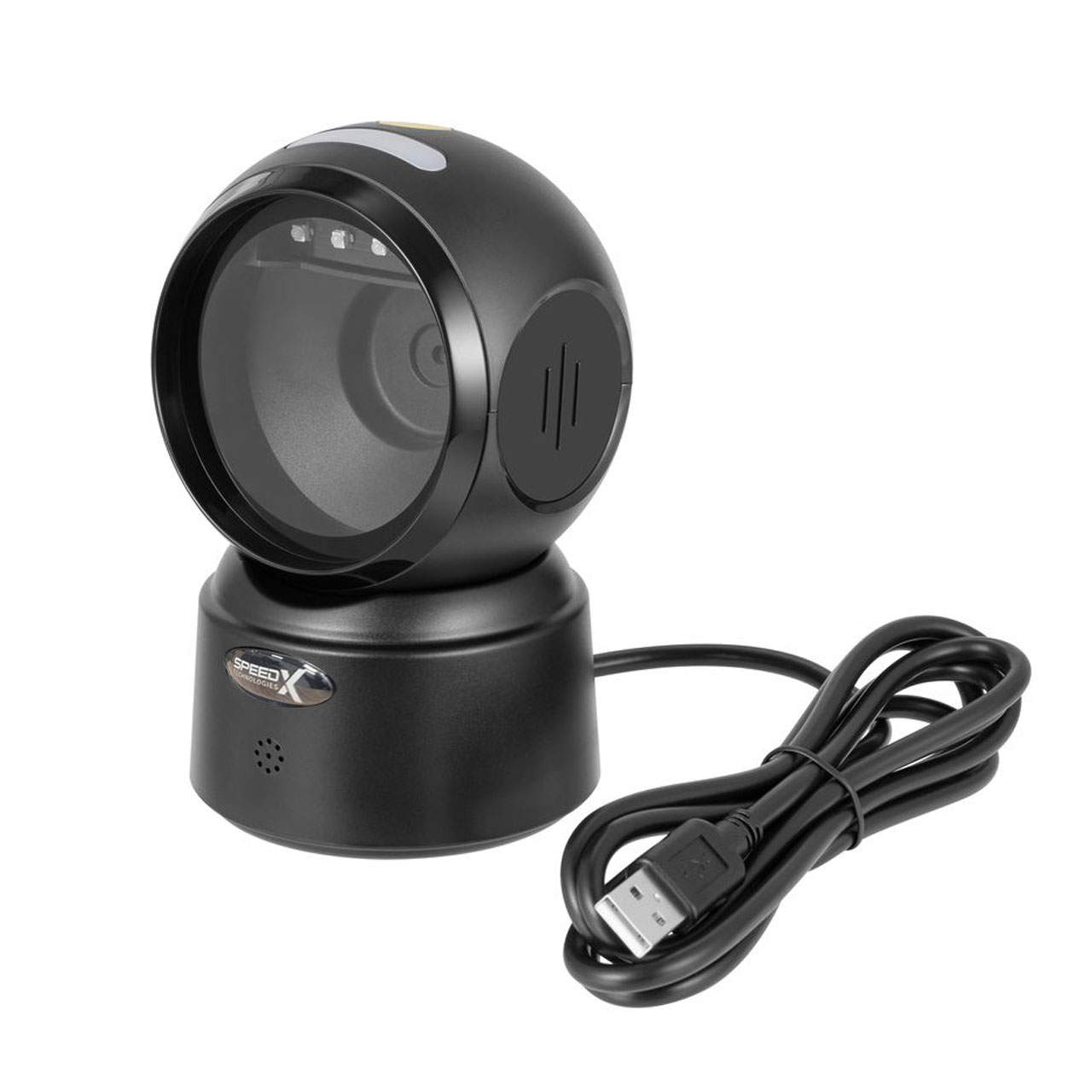

Speedx Sp-9260 2d Cmos Wired Desktop Barcode Scanner
₨ 7,850
Technical Specifications Electrical Characteristics Interface SupportedUSB HID KEYBOARD/USB VCPInput VoltageDC 5V±5%CurrentMax:335mAOptical Characteristics Image SensorCMOS Array SensorSensor Resolution640 X 480…
Speedx Sp-9260 2d Cmos Wired Desktop
Looking for Speedx Sp-9260 2d Cmos Wired Desktop? Review the product overview and specifications below to check whether it suits your setup.
| Technical Specifications | |
| Electrical Characteristics | |
| Interface Supported | USB HID KEYBOARD/USB VCP |
| Input Voltage | DC 5V±5% |
| Current | Max:335mA |
| Optical Characteristics | |
| Image Sensor | CMOS Array Sensor |
| Sensor Resolution | 640 X 480 Pixels |
| Light Aimer | 617nm LED |
| Indication | Buzzer & LED |
| Trigger | Auto-sense, Button |
| Decoding speed | 60FPS |
| Performance Characteristics | |
| Scanning Angle | Pitch angle:±55°;Skew angle:±55°;Tilt angle:±360° |
| Field of View | 43° H),33° V) |
| Min Resolution | 1D?4mil, 2D?5mil |
| Min .PCS value | ?20% UPC/EAN 13?13mil? |
| Language | Multiple Languages |
| Data Edition | Support for custom data output |
| Decode Capability | 1D: Codabar,Code39,Interleaved2of5,NEC2of5, Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11, Code128, GS1-128, UPC-A, UPC-E0, UPC-E1, EAN/JAN-13, EAN/JAN-8, MSI, GS1-DataBar Omnidirectional,GS1 DataBar Limited, GS1 DataBar Expanded, China Post(Hong Kong 2 of 5),GS1 Composite Codes,Codeblock A,Codeblock F,Code 32,EAN/JAN-8, ISSN, ISBN 2D?PDF417, QR Code, Data Matrix, Aztec code, HanXin code, Maxi Code, Micro PDF417, GS1 Composite |
| Physical Characteristics | |
| Dimensions | 85mm*85mm*140mm(L*W*H) |
| Weight | 370g |
| Indicator | Beeper, LED |
| Environmental Characteristics | |
| Temperature | -20°?60°C (operation) -30°?70°C (storage) |
| Humidity | Relative humidity: 5% to 95% (no condensation) |
| Shock Drop Test | 1.5m drop onto concrete surface |
Decoding Depth of Field
| Symbology | Resolution | Nearest | Farthest |
| Code 39 | 5mil | 10mm | 90mm |
| Code 39 | 13mil | 0mm | 175mm |
| UPC-A | 3.34mil | 10mm | 170mm |
| QR | 20mil | 0mm | 130mm |
| QR | 30mil | 0mm | 180mm |
| Pay Code?QR 3*3cm? | – | 10mm | 320mm |
| Pay Code?QR 2.3*2.3cm? | – | 0mm | 260mm |
Shop Speedx Sp-9260 2d Cmos Wired Desktop at TechPoint
Check the listed features, compatibility, availability and current price before ordering. You can also compare more options in Barcode Scanner/Thermal Receipt Printer.
Delivery charges: flat Rs 250 — anywhere in Pakistan, added at checkout.
Orders are dispatched after confirmation and delivered by courier to your doorstep. You will be contacted if anything about your order needs confirmation.
Questions about your delivery? Reach us through the contact page.
